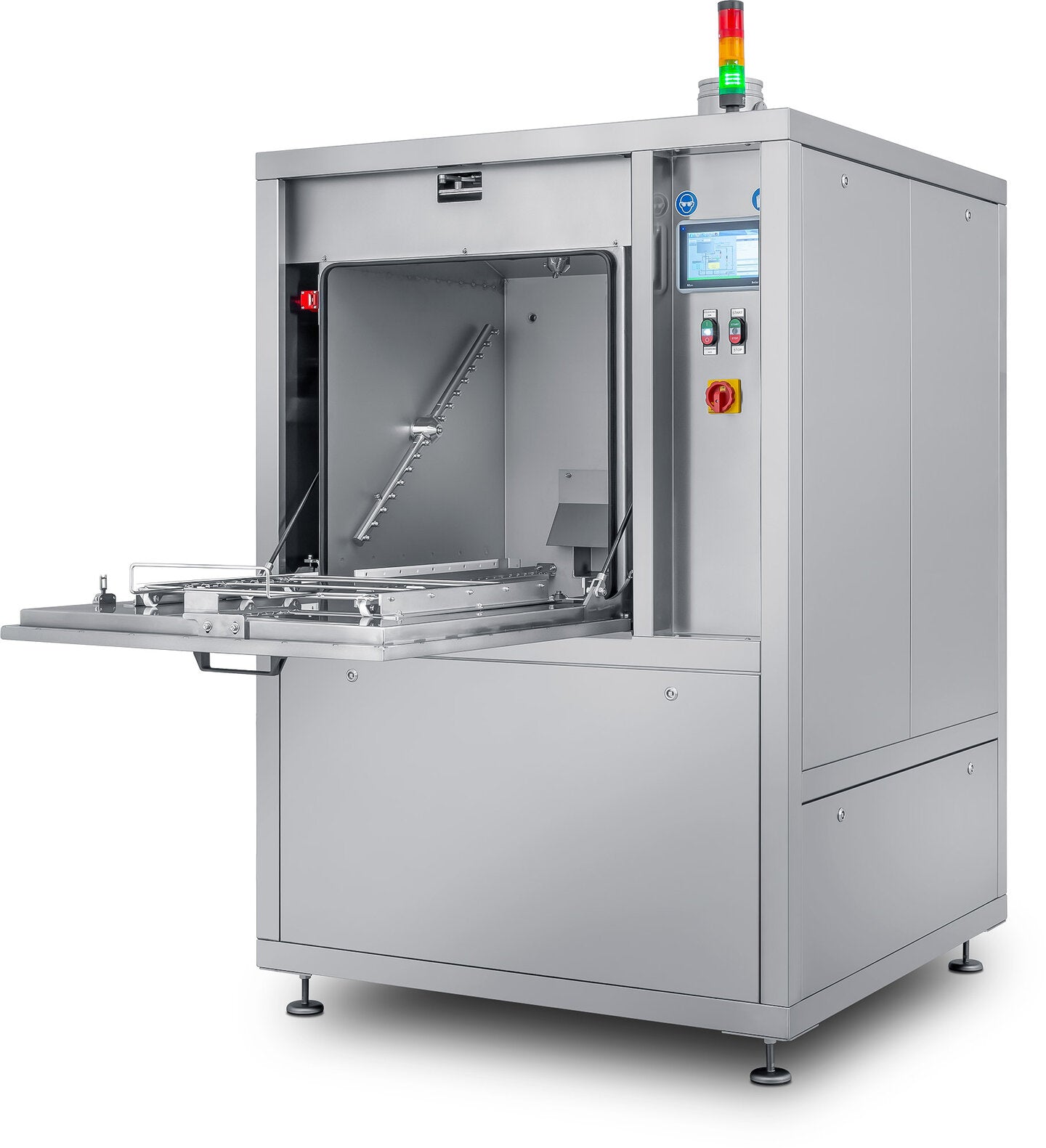

SYSTRONIC CL900LR

SYSTRONIC CL900LR

Single chamber – Spray in air cleaner

The SYSTRONIC CL900LR cleaning system is the ideal system for cleaning your painting frame. The automatic single-chamber cleaning system made of stainless steel sprays via four rotating spray arms in a closed circuit. The system consists of a closed cleaning circuit, a closed rinsing circuit, a drying unit and a separate drain pump.

After the respective process steps cleaning and rinsing, the arms are blown free with compressed air in order to avoid mixing of the cleaner and the rinsing water.

  • The drying takes place via convection drying using the supply and exhaust air principle.
  • The process chamber is loaded via a loading door that can still be folded out at the front.
  • This enables the cleaning basket to be easily removed.
  • The system is operated via a user-friendly touch panel.
  • The system has built in more chemical resistant materials due to the cleaner requirements.
  • It is the perfect model for medium and high throughputs.

Download System brochure PDF

View full details
  • img link

    Spacious & space-saving

    • Large, flexible holding capacity for the items to be cleaned
    • Small footprint
    • Chamber size up to 500 x 500 x 600 mm
    • Fully automatic multi-phase process
    • Programmable via touch panel
  • img link

    Clean, fast and robust

    • Continuous filtration
    • Short cleaning time
    • Short process times
    • Made entirely of stainless steel
    • Easy to operate, fast and economical cleaning system
  • img link

    Rinsing & drying

    • Cleaning, rinsing and drying of paint carriers

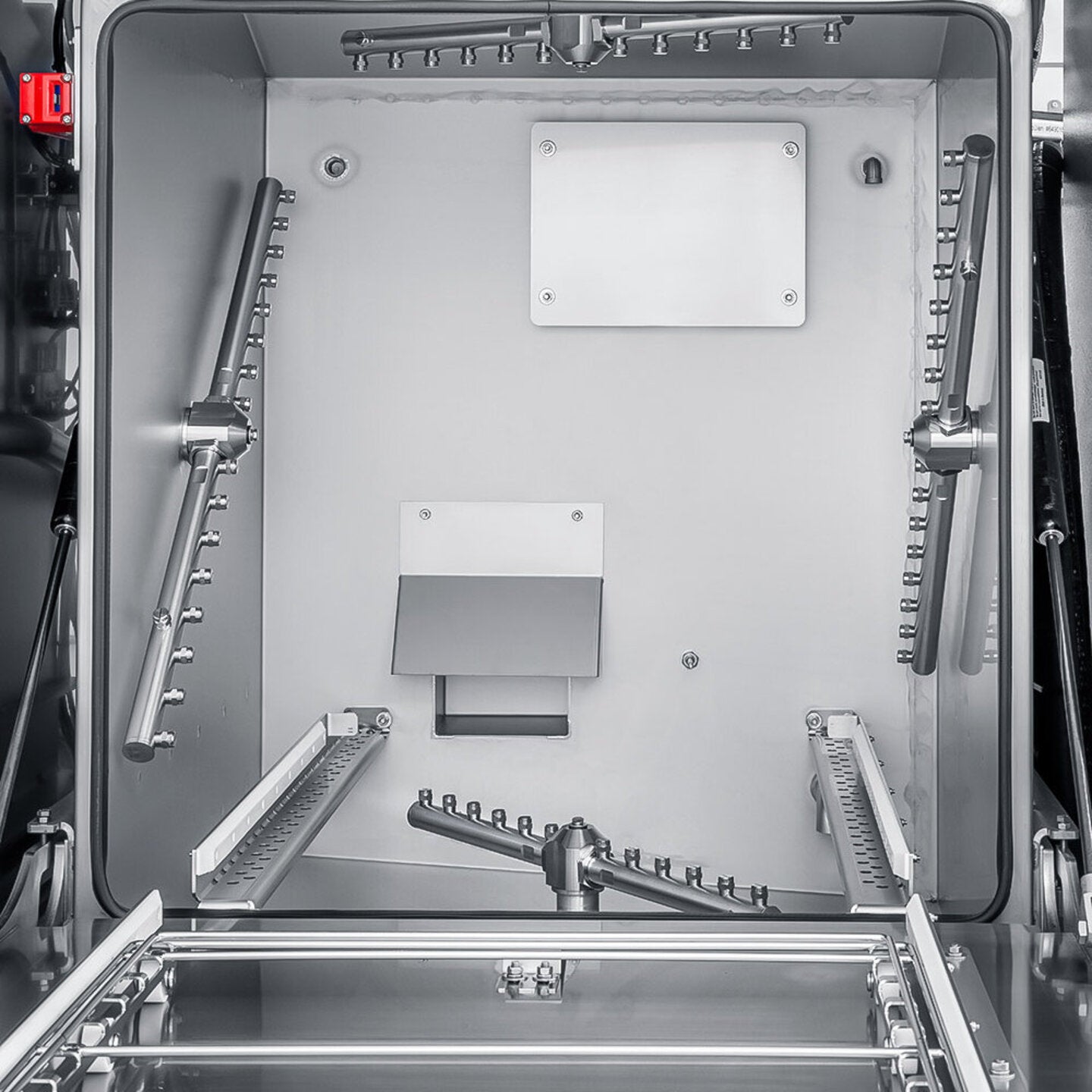

    • Four rotating spray arms
    • Fine filter system in the cleaning circuit
    • Excellent convection drying
    • Large tank volume, separate circuits
    • Optionally as a closed loop system
