SYSTRONIC CL830

SYSTRONIC CL830

Single chamber immersion process

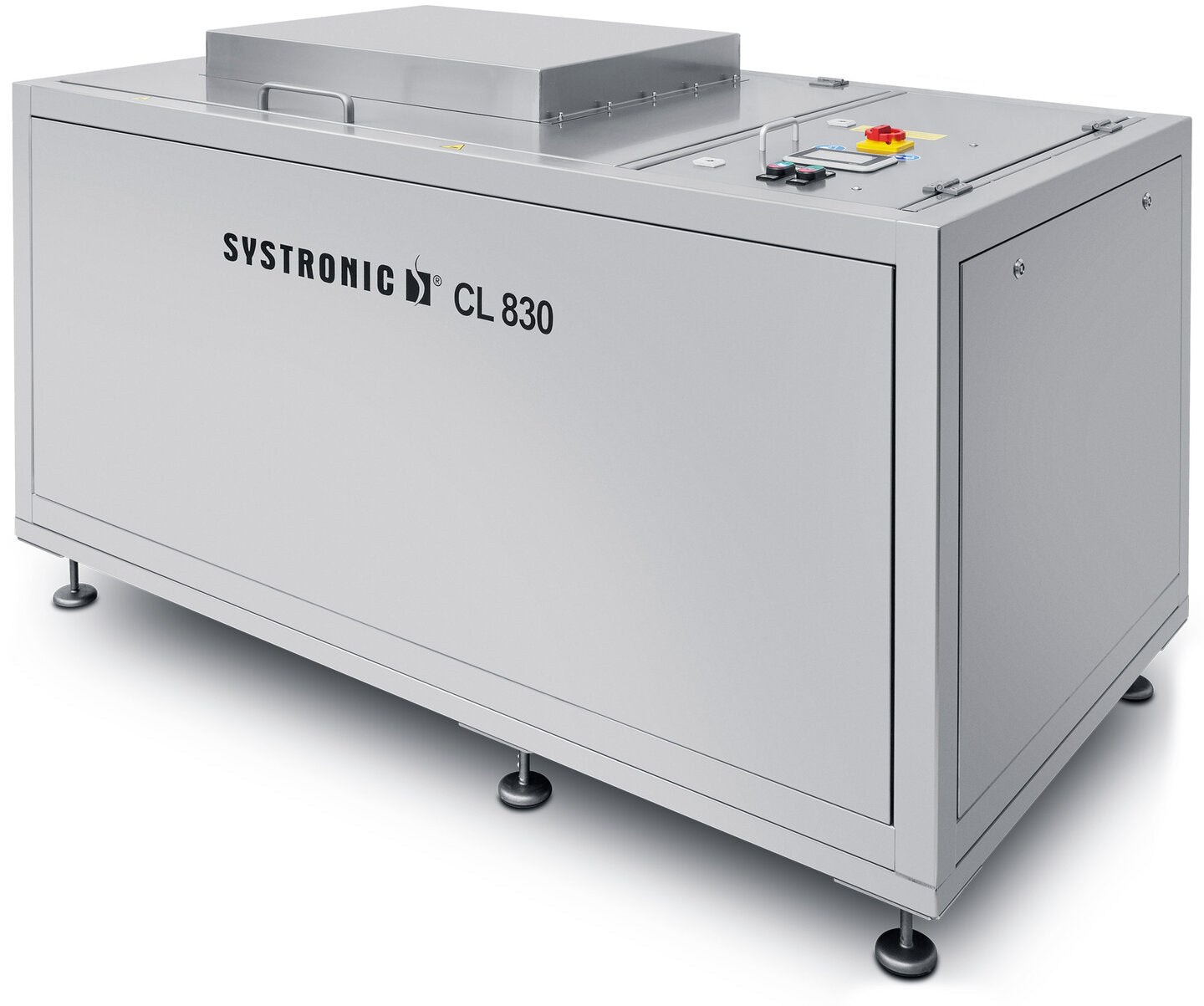

The SYSTRONIC CL830 cleaning system is the ideal system if you want to clean soldering frames, filters and oven parts.

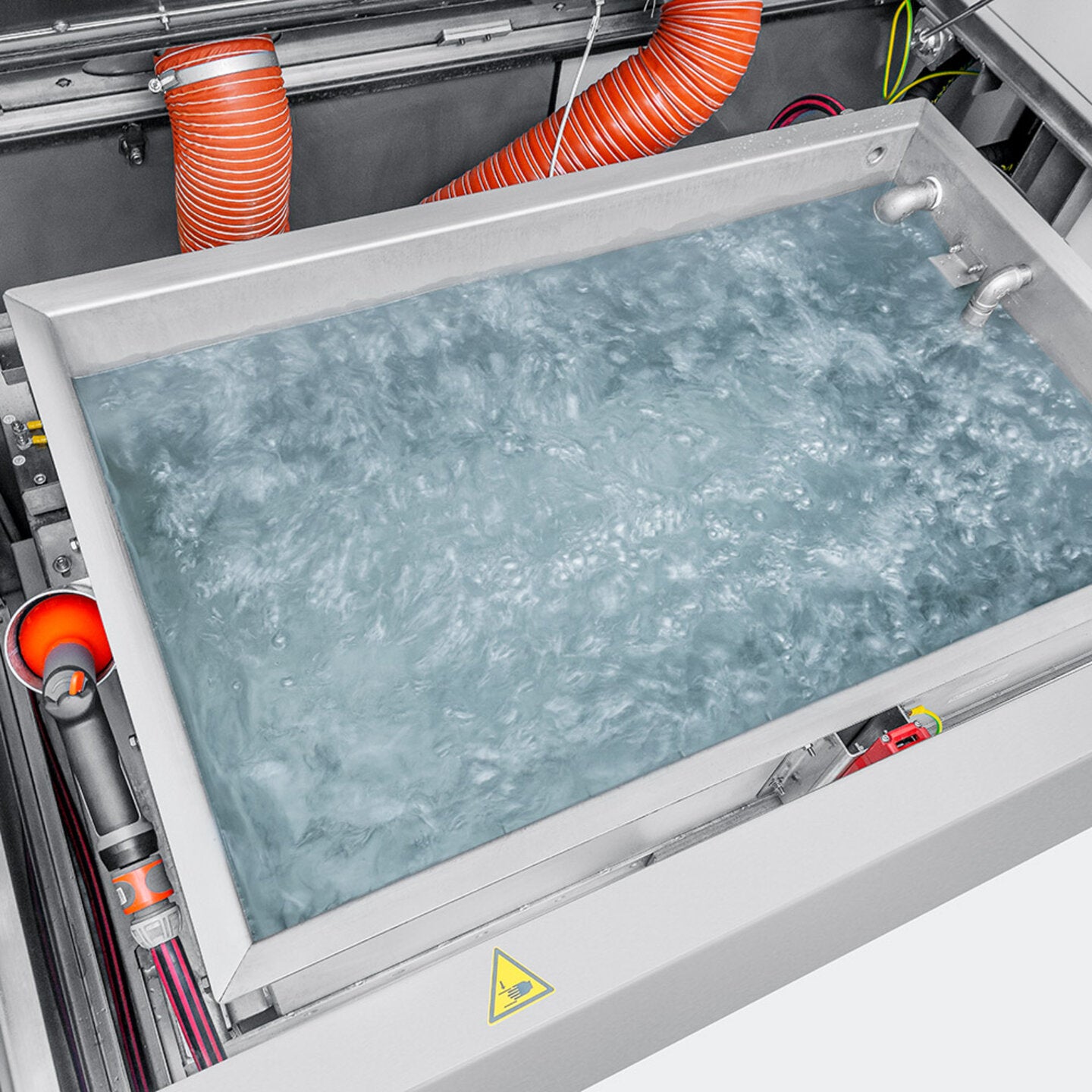

The single-chamber cleaning system made of stainless steel cleans through the aerator effect via a register inserted in the chamber floor. The cleaning medium is set in motion with the aid of compressed air.

  • The SYSTRONIC CL830 is equipped with a 290 liter tank, which has the advantage of a very long cleaning service life.
  • The system is operated via a user-friendly touch panel.
  • Optionally, the system can also be equipped with a semi or fully automatic flush.
  • Another option is a drying unit to operate the system fully automatically.
  • If the chamber size is not sufficient for your items to be cleaned, you can use the CL831 to enlarge the chamber size to your desired size. This also increases the size of the cleaning tank.
  • It is the perfect model for medium and high throughputs.

Download System brochure PDF

View full details
  • img link

    Spacious & space-saving

    • Low investment volume
    • Low space requirement
    • Part size 905 x 524 x 410mm (CL831 any size)
    • Compact and user-friendly
    • Programmable via touch panel
  • img link

    Clean, fast and robust

    • Semi-automatic and fully automatic process possible
    • Short cleaning time
    • Easy to operate, fast and economical cleaning system
    • Low maintenance
    • Made entirely of stainless steel
  • img link

    Rinsing & drying

    • Cleaning of filters and condensate traps
    • Closed loop system
    • Optional with rinsing and drying
    • No chemical contact for the user
