Temperature treatment

Curing Systems, Cooling Systems

  • 1 to 6-lane
  • Up to two transport levels
  • Heavy-duty transport
  • Uni-directional conveyor
  • Bi-directional conveyor
  • Accelerator belt

Product-specific curing and drying of conformal coating and pottant.

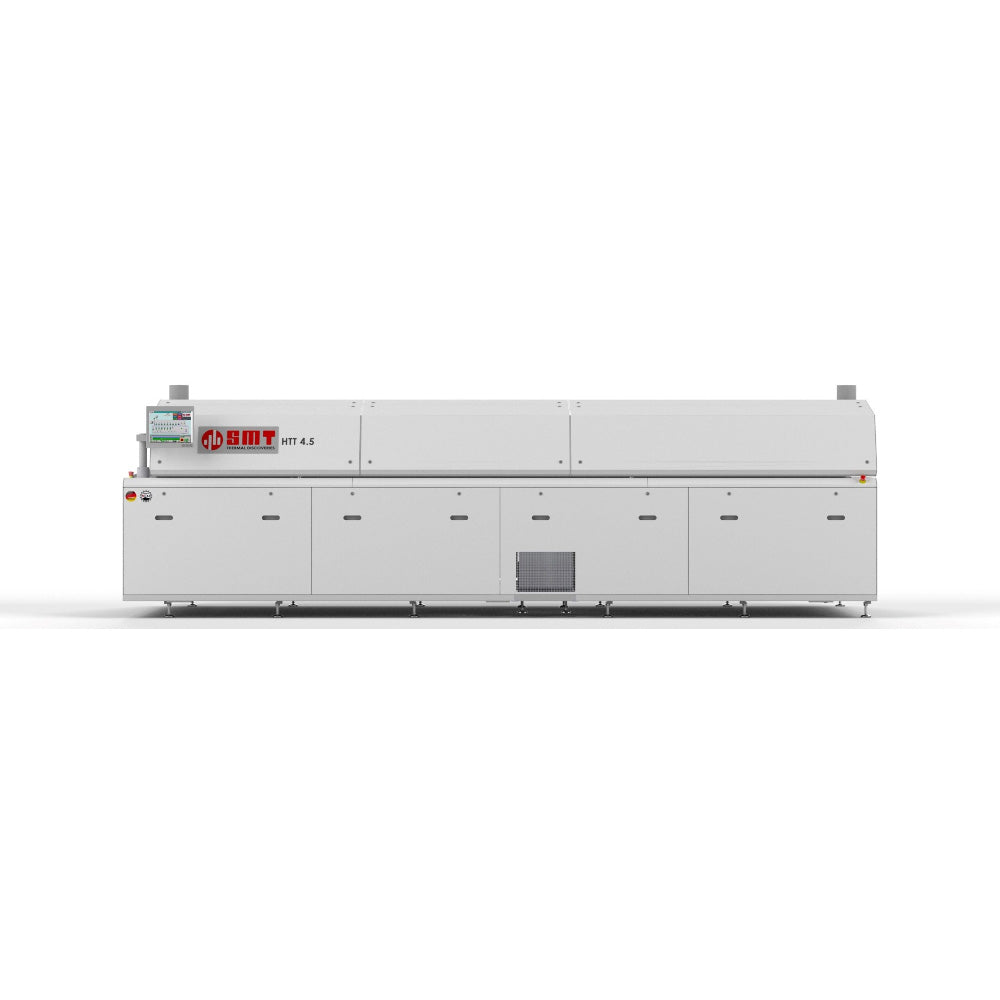

HTT- High-temperature-Temper systems

Product-specific curing and drying of conformal coating and pottant. Perfect heat pre-treatment for electronic components and modules for hot function tests. Best reproducibility of temperature profiles.

SMT THERMAL DISCOVERIES

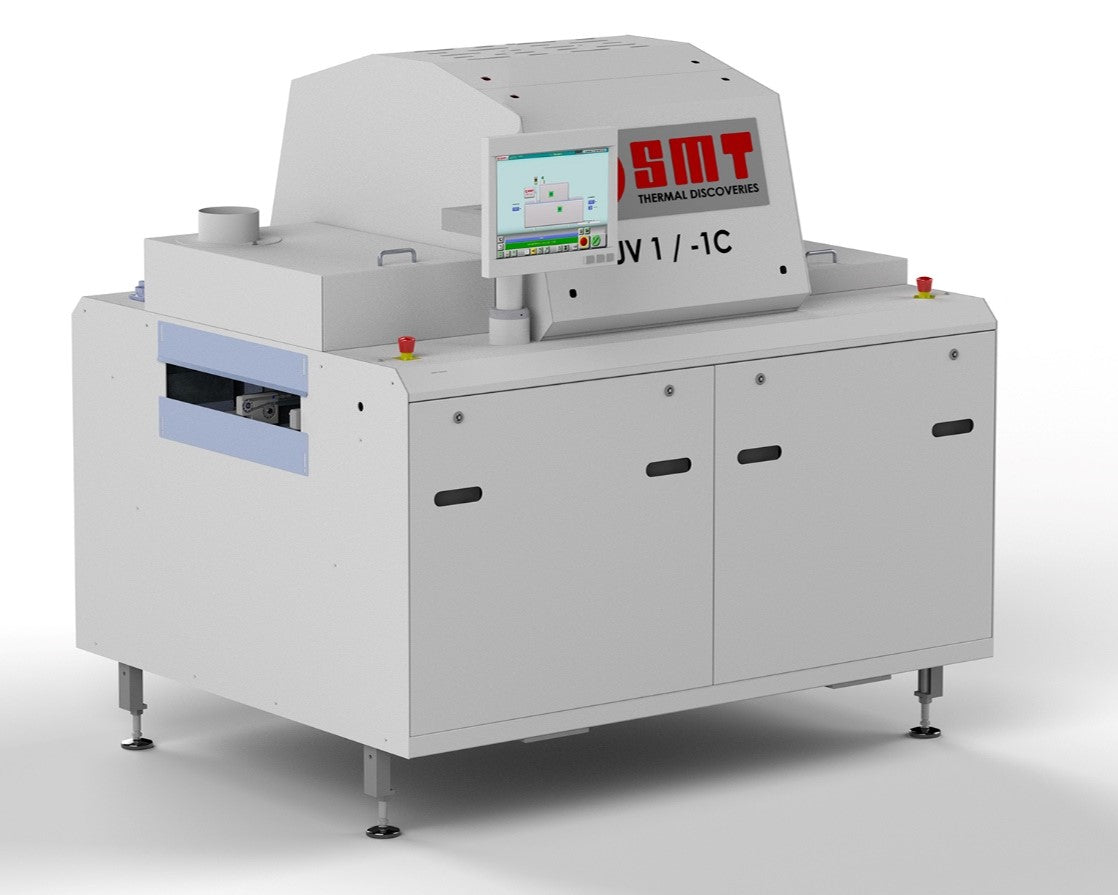

UV Conformal-Coating-System

The modular, variable machine design for UV-curing of ready mounted control units or PCB with extended pass through height.

SMT THERMAL DISCOVERIES

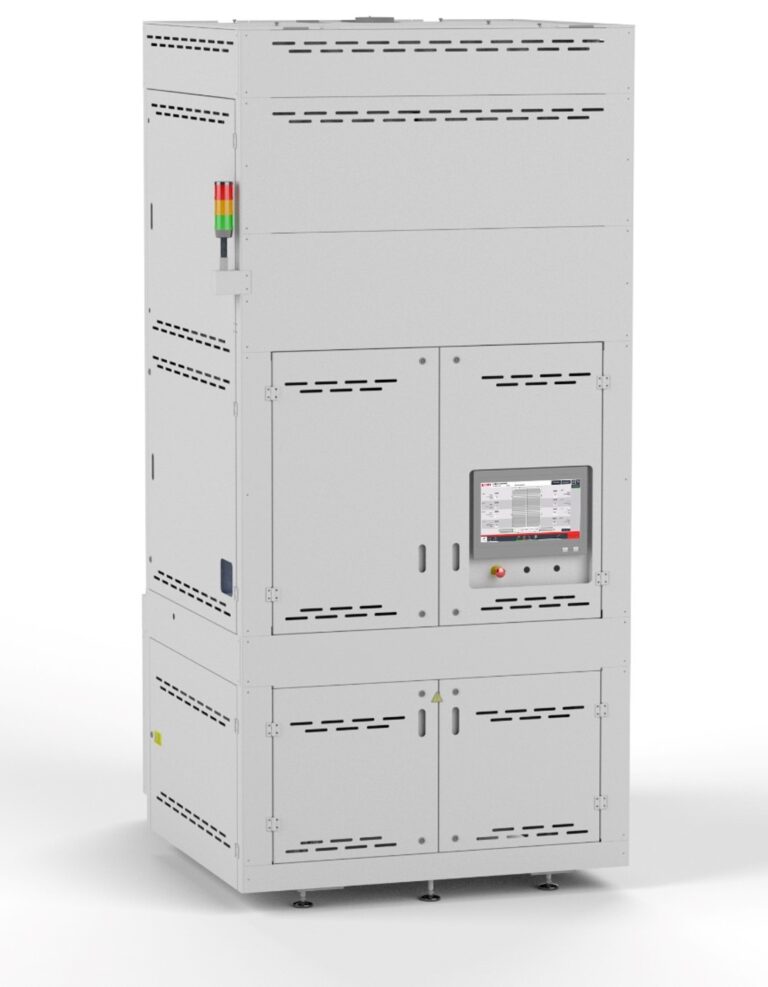

Vertical system

  • transport system is based on work piece carrier
  • carrier size (400 x 400 mm)
  • 3 or 4 zones up and down

Your Benefit

  • manually or automatically operated
  • lubricate free transport
  • also with cooling zones available
  • minimal footprint
SMT THERMAL DISCOVERIES

Layout comparison standard HTT vs. Vertical system

Cycle time: 17s
Product length: 150mm
Product width: 100mm (on wpc 150mm)
Product height: 50mm
Heat-up time: 15min.
Holding time: 30min.
Cool-down time: 15min.

HTT 8.0 K3.0 – 4 lane transport = footprint ca. 25m²
VH8 – 6 heating zones and 2 cooling zones = footprint ca. 3,5m²
VH8 = 86 % less footprint
