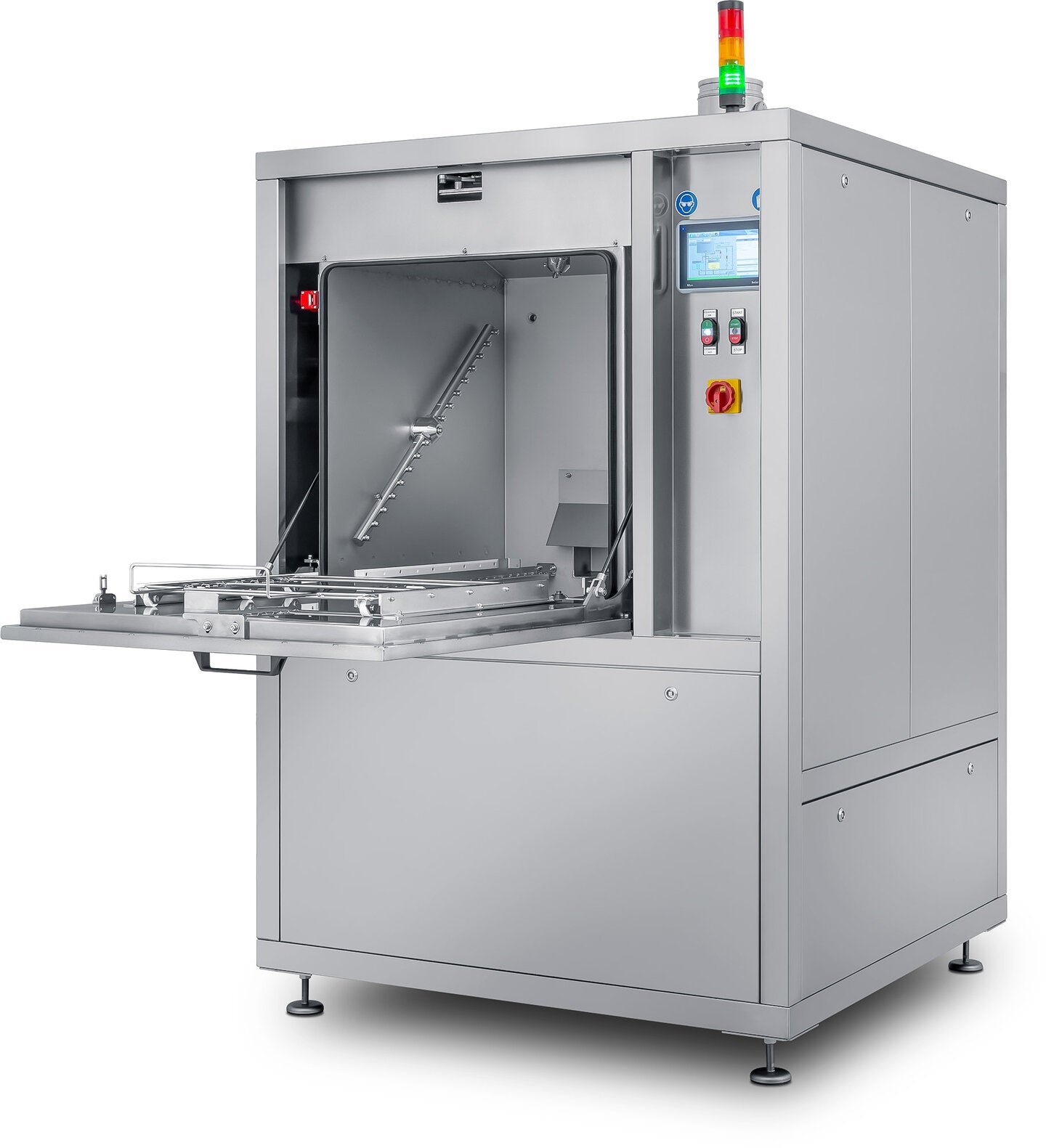

SYSTRONIC CL300

SYSTRONIC CL300

Single chamber – Spray in air cleaner

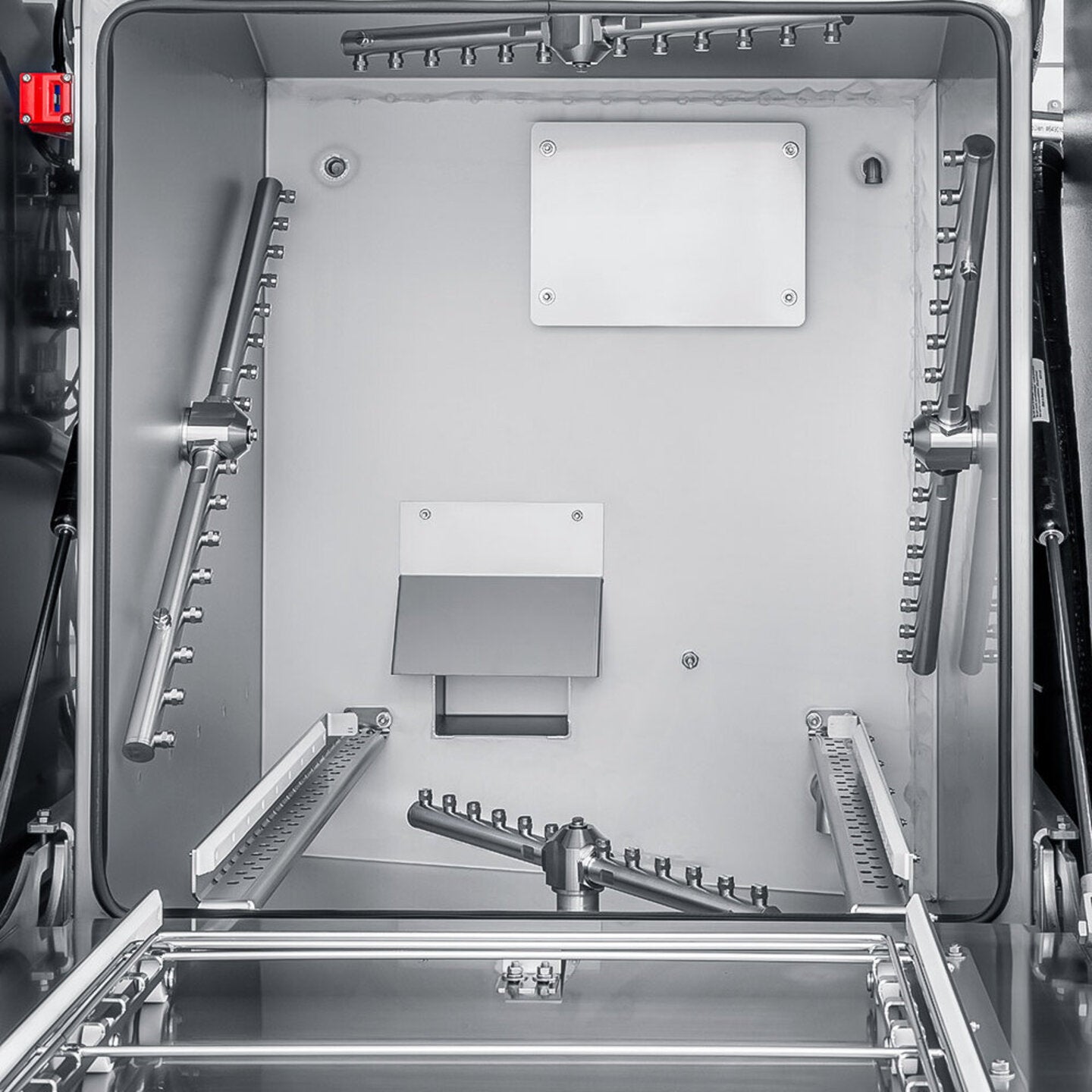

The SYSTRONIC CL300 cleaning system is the ideal system for cleaning your soldering frames. The automatic single-chamber cleaning system made of stainless steel sprays via four rotating spray arms in a closed circuit. The system consists of a closed cleaning circuit, a closed rinsing circuit, a drying unit and a separate drain pump.

  • After the respective process steps cleaning and rinsing, the arms are blown free with compressed air in order to avoid mixing of the cleaner and the rinsing water.

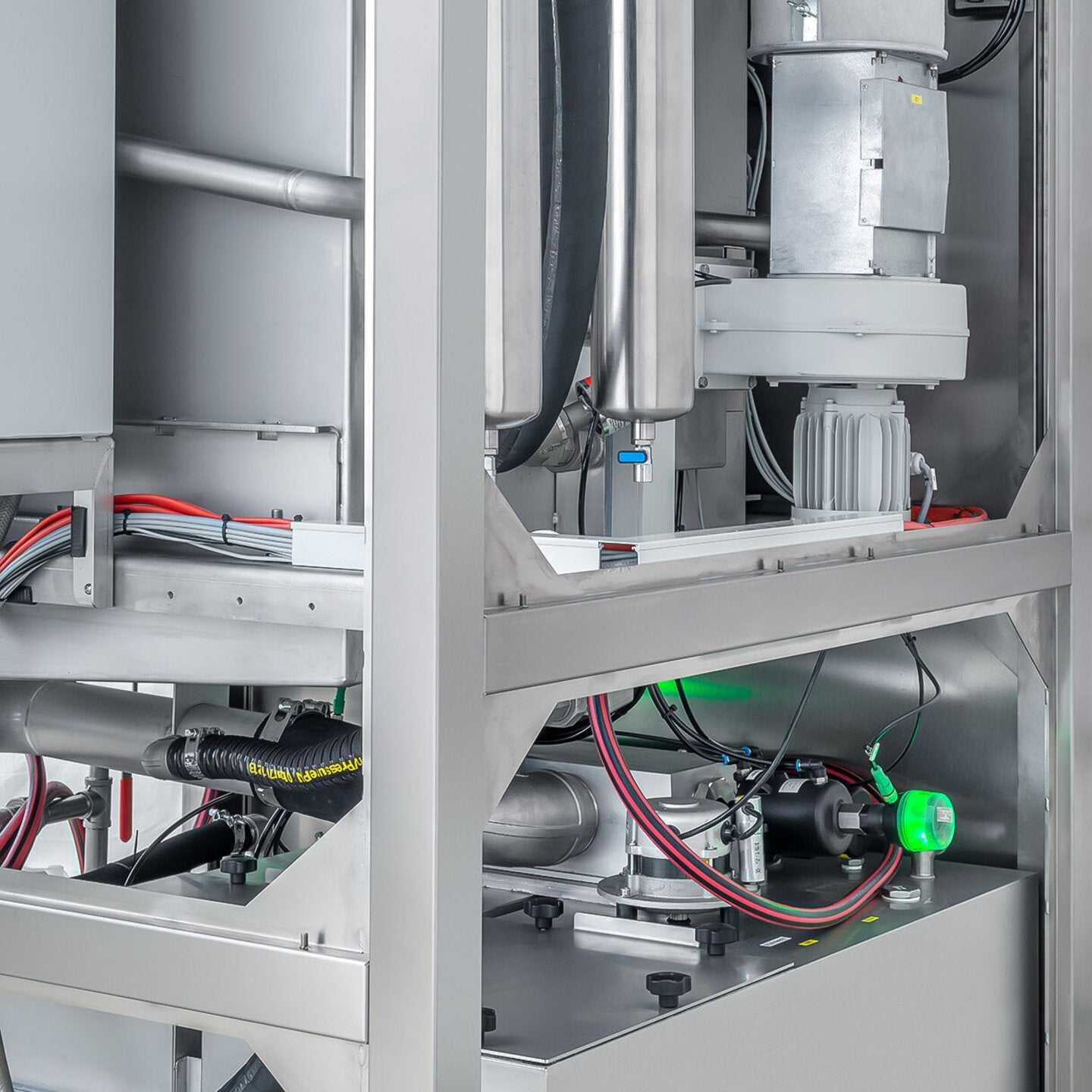

  • The drying takes place via convection drying using the supply and exhaust air principle.
  • The process chamber is loaded via a loading door that can still be folded out at the front.
  • This enables the cleaning basket to be easily removed.
  • The system is operated via a user-friendly touch panel.
  • It is the perfect model for medium and high throughputs.

Download System brochure PDF

View full details
  • img link

    Spacious & space-saving

    • Large, flexible holding capacity for the items to be cleaned
    • Small space requirement
    • Chamber size up to 500 x 500 x 600 mm
    • Fully automatic, multi-phase process
    • Programmable via touch panel
    • Compact and user-friendly
  • img link

    Clean, fast and robust

    • Short cleaning time

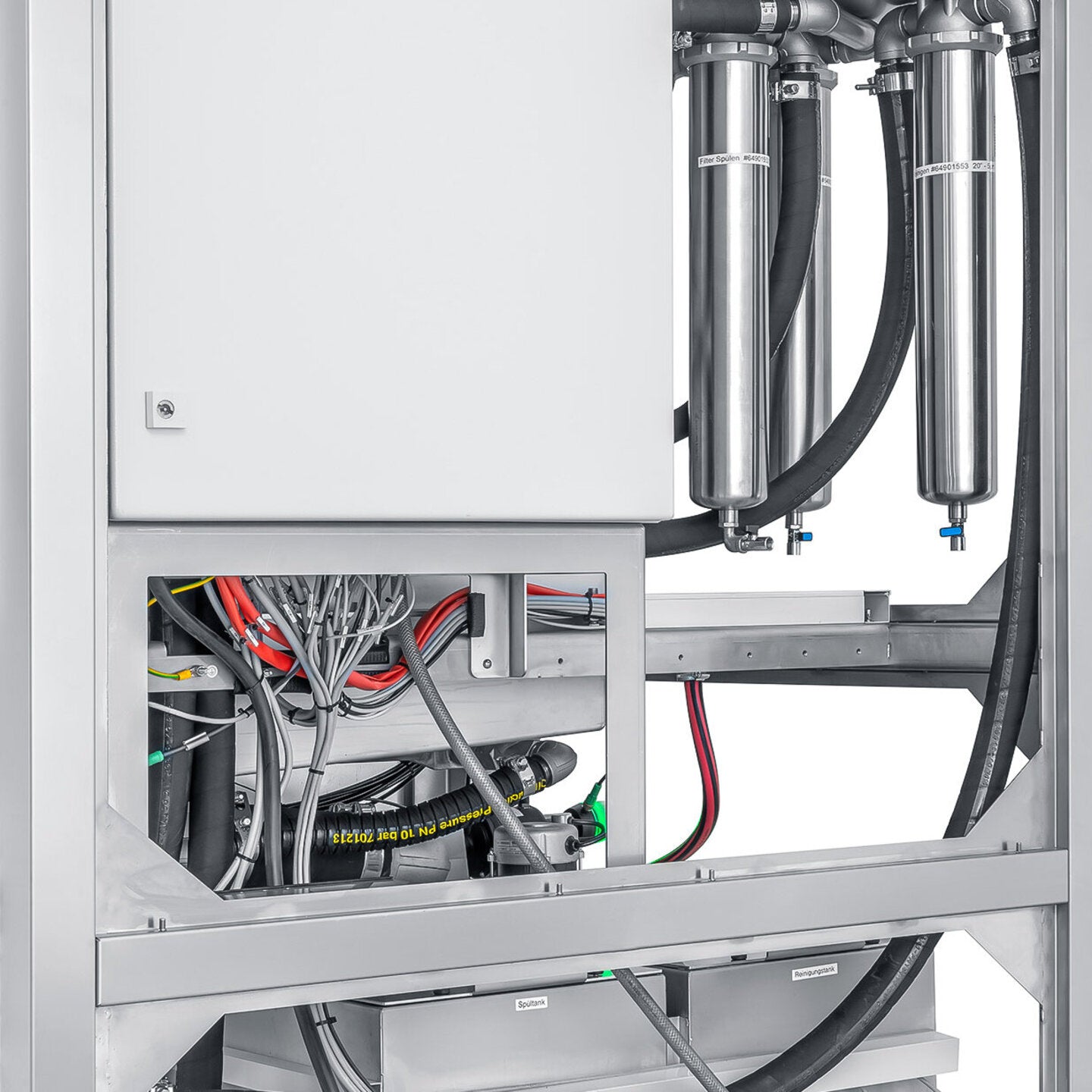

    • Fine filter system in the cleaning circuit
    • Easy to operate, fast and economical cleaning system
    • Low maintenance
    • Made entirely of stainless steel
  • img link

    Rinsing & drying

    • Cleaning, rinsing and drying of solder frames
    • Large, flexible chamber
    • Closed loop system
